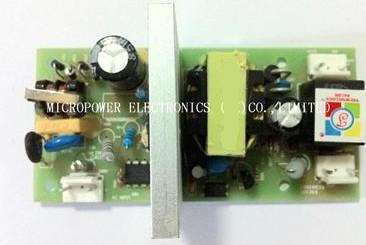

12V1.5A EPS/battery charger
Product Details:
Place of Origin:
Certification:
ce
Model Number:
MP-open-charger
Payment & Shipping Terms:
Minimum Order Quantity:
500pcs
Price:
negotiable
Packaging Details:
PE bag or wite box
Delivery Time:
20days upon your PO and payment
Payment Terms:
TT or at sight L/C
Supply Ability:
1000000pcs/month
 Request A Quote
Product Description

12V 1.5A   EPS SPECIFICATION
1．Products
12V1.5A Open frame EPS/UPS
This powre supply is customized for our alarm system customer,which is built-in power for alarm system.
it is working with 12V12AH Lead acid battery
when have City AC input 220VAC, charging voltage will be 13.8V~14.5V for battery ,at the same time will output 13.8V~14.5v for your application working
When no city AC input 220VAC,your battery 12V12AH lead acid battery will output 13.8V~10.5V for your application working, when battery voltage down to be 10.5V, will stop working.

Please send you requirement, we can custom power supply
   The DC EPS used in 12V DC power supply system, guarantee system of long-term uninterrupted 12V output, at the same time can provide to the 7-12HA lead-acid battery charging.
2．The main parameters
Model 40VA
INPUT Voltage（V）1 900AC-264VAC   (100VDC-380VDC)
Voltage（V）2 DC12V
Frequency:(HZ)  50Hz   60Hz  +/-2Hz　
ON LOAD POWER(W) 1W
OUTPUT Voltage（V） 13.8-10.8V+/-0.3V DC
Output Current（A) 1.5A±0.3A
Charger Current（A) 1A±0.3A
Max Power Efficiency 83%
Surge current  50A
Protection circuit: reverse polarity protection, low battery voltage protection,Over current protection
Max continuous power 36W
EMC CE
Noise <55dB
Relative Humidity 0～90%
Ambient temperature ,-10℃--+40℃
Altitude Below 1,000 meters
size 105*50*40MM
weight 0.5KG
PCB fixed size 75*40MM
wi�_tx� � mso-border-bottom-alt:solid windowtext .5pt;mso-border-right-alt:solid windowtext .5pt; padding:0cm 5.4pt 0cm 5.4pt;height:20.25pt'>0.5KG
PCB fixed size
75*40MM

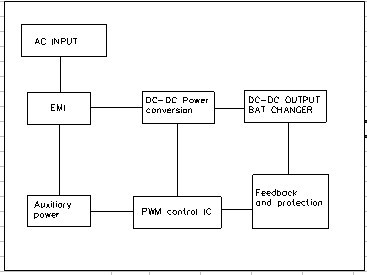

3.work

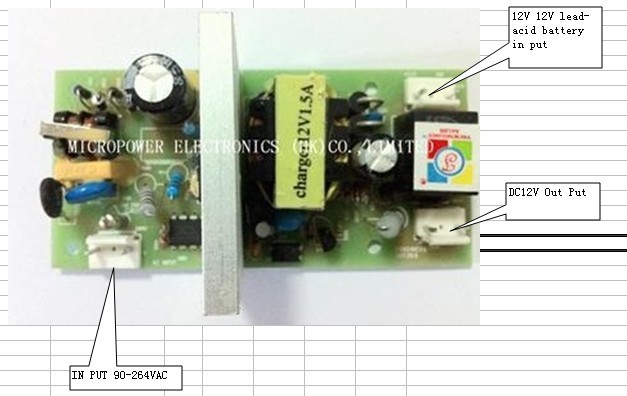

4.Circuit board
